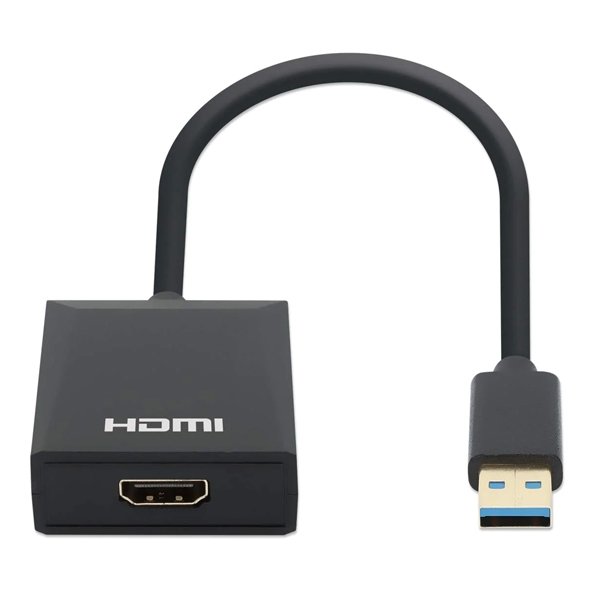

MANHATTAN 153690 Adapter

The Manhattan USB-A to HDMI Adapter lets you connect your laptop or desktop computer to an HDMI monitor, TV or projector through a single USB Type-A port. Add a display in mirror mode for larger screen space, or add it in extend mode for more productivity with multitasking. It provides a cost-effective and convenient way to expand the video capabilities of your Mac or PC. This product works like an external graphics card, so adding a second adapter lets you connect a second display.

An HDMI adapter that’s made to go with you
The very compact housing makes this USB to HDMI Adapter the perfect travel companion. With a footprint of only 52 x 45 x 16 mm (2.05 x 1.77 x 0.63 in.) it’s small enough to fit in an outer notebook bag pocket so you can create a mini-workstation for your laptop where ever you’re going.

Features

• Easily connects a USB-A device to an HDMI display.
• Resolutions up to Full HD 1080p@60Hz (1980×1080).
• Converts a USB 3.2 Gen 1 (formerly USB 3.0) signal into an HDMI signal with video and audio.
• Ideal for connecting an HDMI display to a PC or laptop that doesn’t have an HDMI port or for adding a display if the HDMI port is already in use.
• Supports display modes Extended or Mirror on Windows, and Mirror on Mac.
• Serves as an external graphics card, which allows adding up to two external displays to your system (requires one adapter per display).
• Built-in, sturdy 15 cm (6 in.) cable.
• Bus powered: no external power supply needed.
• Backward compatible with USB 2.0.
• Portable, compact, lightweight design that easily fits into laptop bag pockets.
• HDCP 1.4 compliant.
• Plug-and-play installation; Windows, and macOS compatible.

Specifications

Standards and Certifications

• USB 3.2 Gen 1
• HDCP 1.4
• CE
• FCC
• RoHS
• REACH
• UKCA

Connections

• One USB-A 9-pin, male
• One HDMI 19-pin, female

Physical

• Dimensions (L x W x H): 234 x 45 x 16 mm (9.21 x 1.77 x 0.63 in.)
• Net weight: 36 g (1.27 oz.)
• Gross weight: 64 g (2.26 oz.)
• Cable length: 15 cm (6 in.)
• Cable diameter: 28 AWG
• Plastic housing

Operating Environment

• Operation temperature: -20 – 45°C
• Storage temperature: -20 – 80°C
• Humidity (noncondensing): 5 – 90% RH

System Requirements

• Windows 7/8.1/10/11 and macOS
